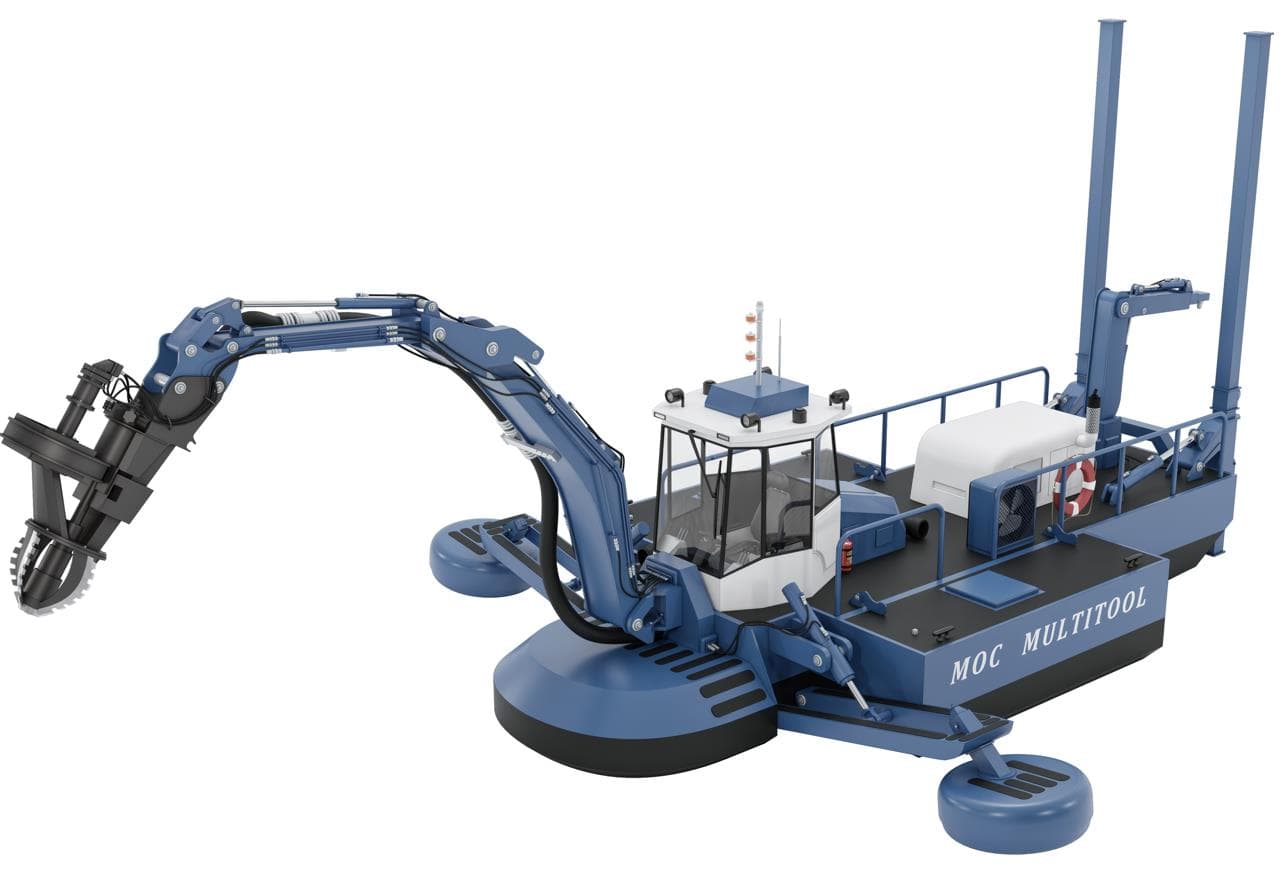

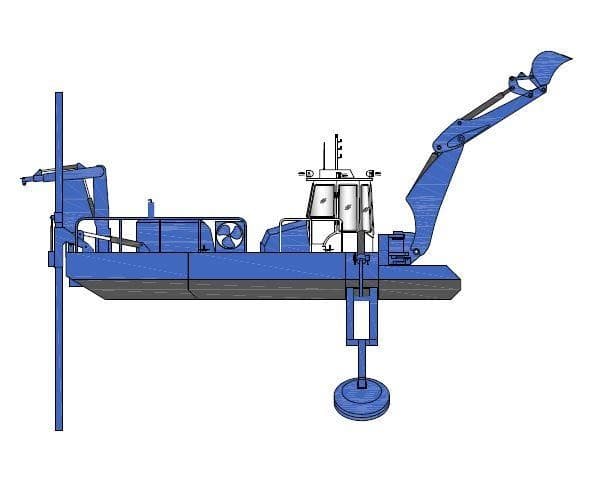

MOC MultiTool
Amphibious Multipurpose Dredger for shallow water dredging, clearing, and piling operations on dry land, muddy & swamp conditions, and water areas up to 6.75m depth
Amphibious Multipurpose Dredger
The MOC MultiTool is the ideal machine for civil engineering, construction, and dredging companies, as well as municipalities and governments with projects in shallow waters. This amphibious multipurpose dredger is capable of dredging, clearing, and piling on dry land, muddy & swamp conditions, and water depths up to 6.75m.
Designed by Australian Marine Technology and built by MOC Shipyards, this compact equipment provides an excellent alternative to various single-purpose machines. Easily transported by truck, the MOC MultiTool can load and unload itself from transportation. Powered by a Caterpillar C7.1 engine delivering 270 HP with dual hydraulic pumps.
The MOC amphibious multipurpose dredger concept is an obvious choice when it comes to all environmental shallow water projects globally.
Quick Specifications
Technical Specifications
Performance Specifications
Dredging Capacity
900 m³/hr @ 300mm pipe
Dredge Depth
Up to 6.57 metres
Maximum Speed
4.5 knots
Turning Circle
360 degrees within own length
Fuel Consumption (Cruising)
45 litres/hour
Fuel Consumption (Full Dredging)
57 litres/hour
Operational Wind Speed
Up to 30 knots
Applications
Proven performance across diverse industries and environmental challenges

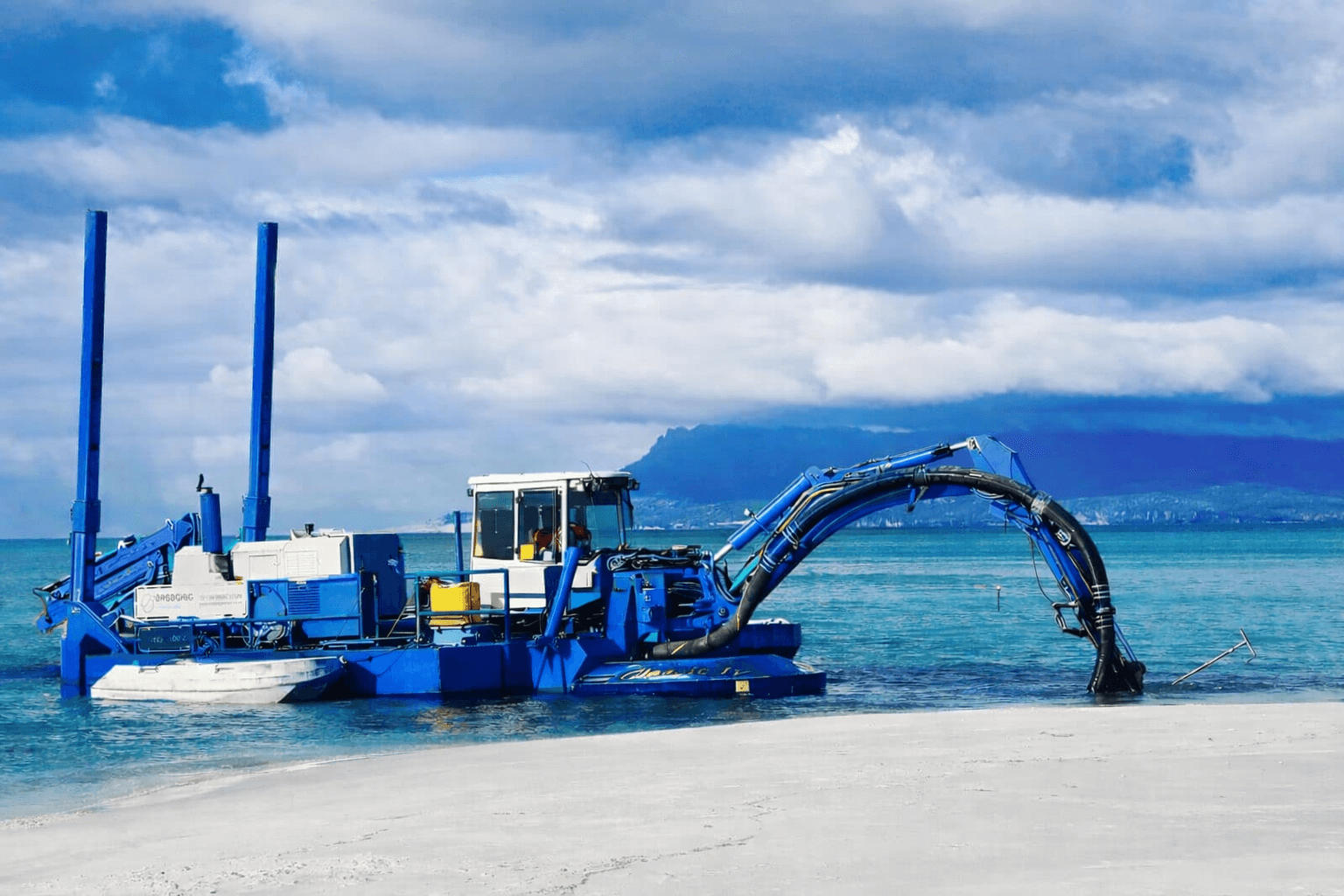

Inland & Coastal Waterways Maintenance
Keep channels navigable and harbours operational
Regular maintenance dredging ensures safe navigation depths for vessels of all sizes. The MOC MultiTool's compact dimensions and shallow 0.50m lightship draft make it ideal for marina basins, boat ramps, and confined harbour areas where larger dredging equipment cannot operate. Whether clearing accumulated silt from berths or maintaining access channels, this system delivers reliable performance in the most demanding maintenance scenarios.

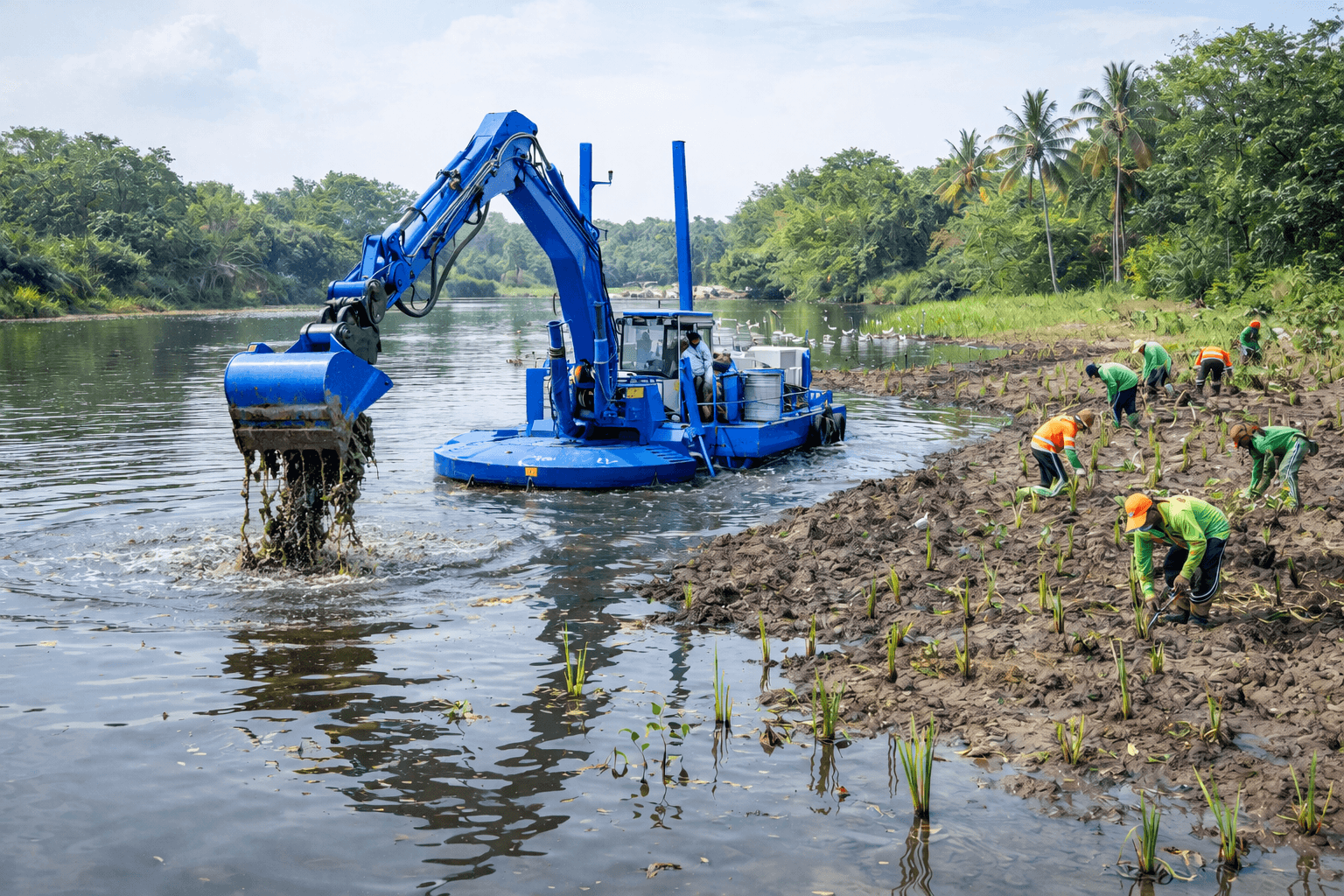

Land Reclamation & Environmental Improvements
Restore ecosystems and reclaim valuable land
The MOC MultiTool excels at heritage and environmental improvement projects. From removing contaminated sediments to restoring natural drainage patterns, this versatile system addresses both immediate remediation needs and long-term environmental health. Its ability to operate in muddy and swamp conditions makes it ideal for wetland restoration and land reclamation projects globally.

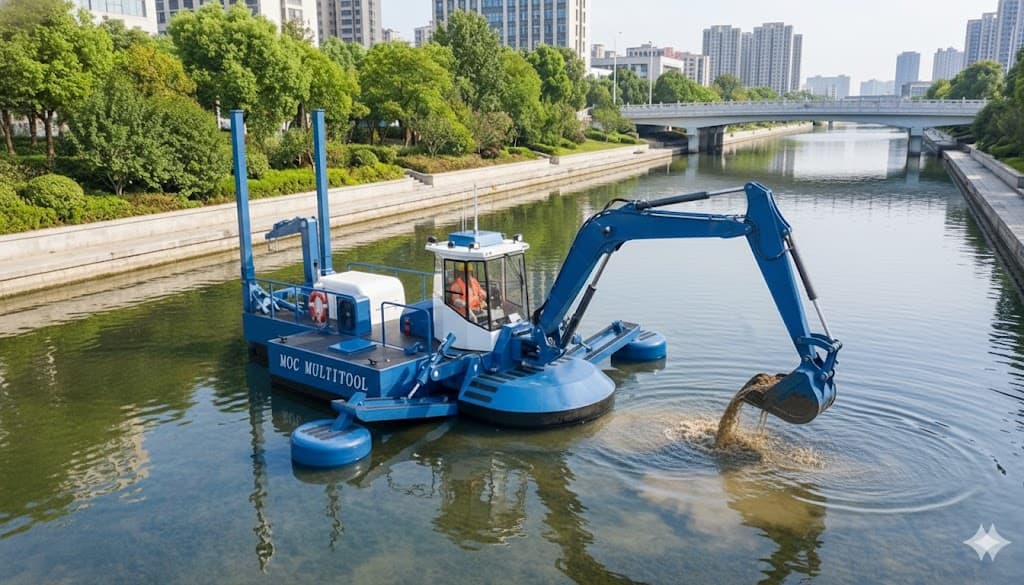

Urban, Industrial & Mining Canals
Clean and maintain critical water infrastructure
Industrial facilities and mining operations rely on efficient water management and material handling. The MOC MultiTool supports tailings pond maintenance, settling basin management, and industrial canal upkeep. With a dredging capacity of 900 m³/hr, the suction dredging system rapidly moves large volumes of material while rock breaking and backhoe capabilities handle challenging substrates.

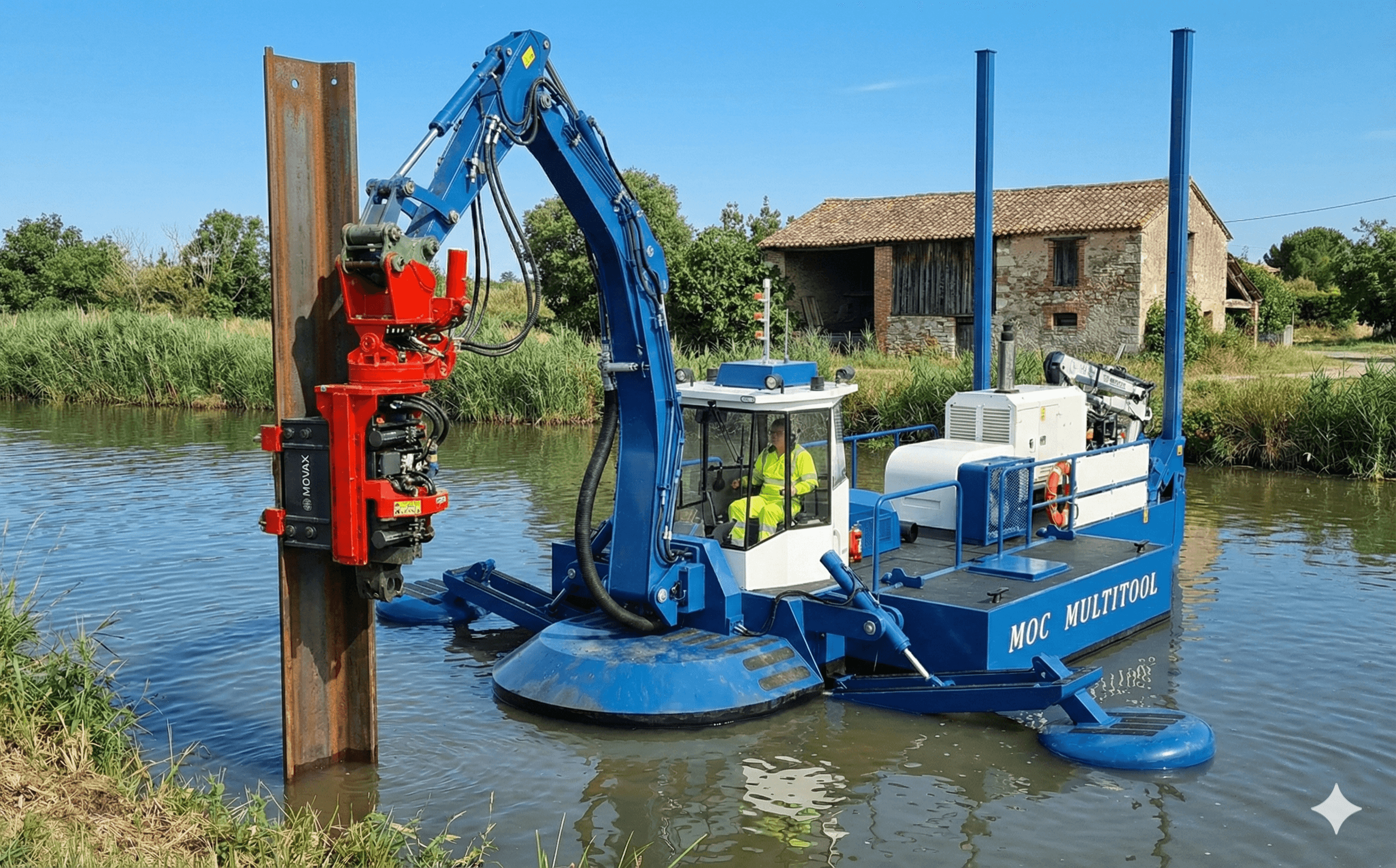

Construction Support & Piling
Foundation work in water and on land
The MOC MultiTool transforms into a capable piling platform using the vibrating piling hammer attachment. This system can drive steel and wooden piles up to 200mm diameter in water depths up to 5 metres, making it ideal for foundation work in marine construction, dock installations, and shoreline stabilisation projects. The hydraulic auger attachment enables precision drilling for construction applications.
Core Capabilities
Explore the versatile capabilities of the MOC MultiTool system
Suction Dredging
High-capacity hydraulic dredging at 900 m³/hr
The MOC MultiTool's rotating cutter head has been engineered to operate in very shallow depths. The dredged material can be pumped ashore through a floating 300mm polyethylene pipeline up to 550m in length. Alternatively, spoil and dredging material can be loaded directly into barges or ashore. The system handles dense aquatic vegetation and various sediment types, making it ideal for channel maintenance, harbour deepening, and environmental remediation.
Related Attachments

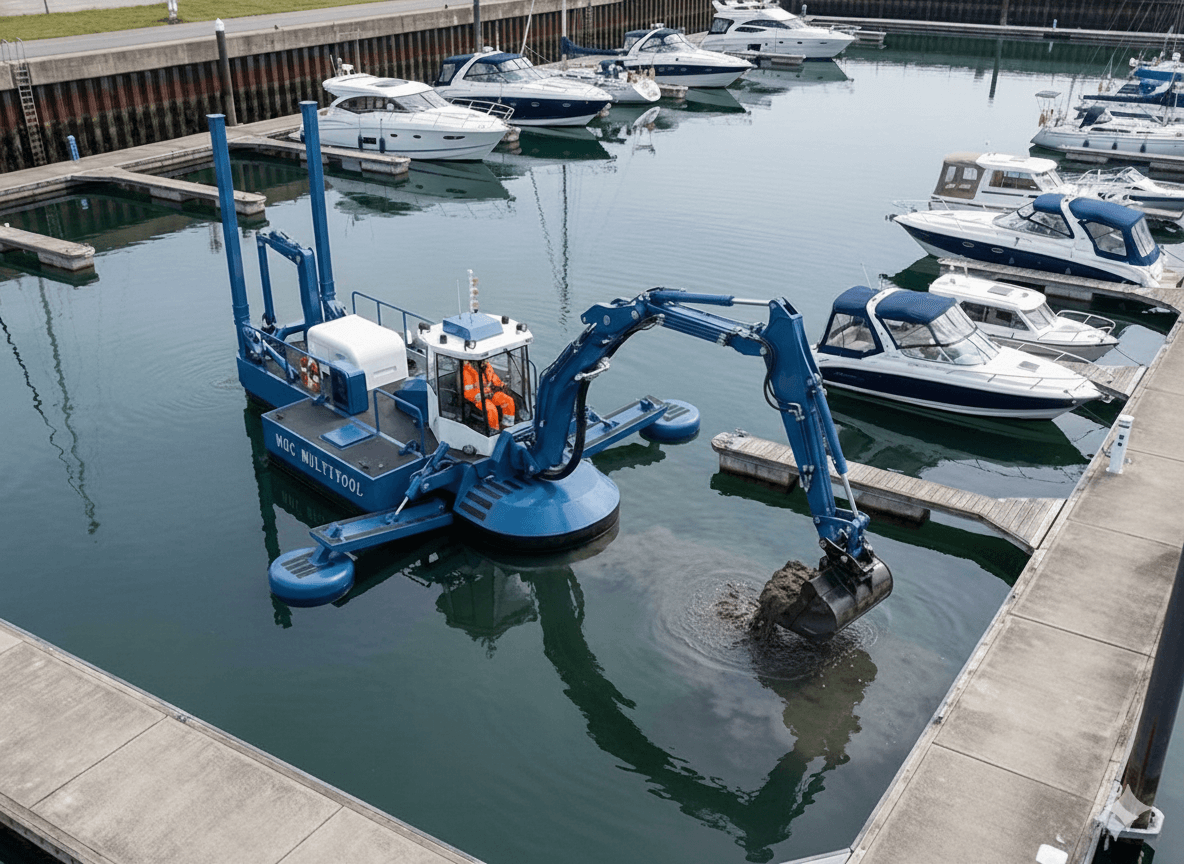

Backhoe & Dipper Dredging
Precise excavation with 180° rotation
The MOC MultiTool can operate a 600 litre clamshell bucket, a backhoe bucket of up to 700 litres, and rakes of various sizes. With the versatility of being able to rotate the buckets and rakes through 180°, the machine can operate in either backhoe or dipper dredge mode. This feature is ideal for sediment removal near structures where precision is critical. The excavator boom reaches 7.3m with depth coverage up to 6.57m.
Related Attachments

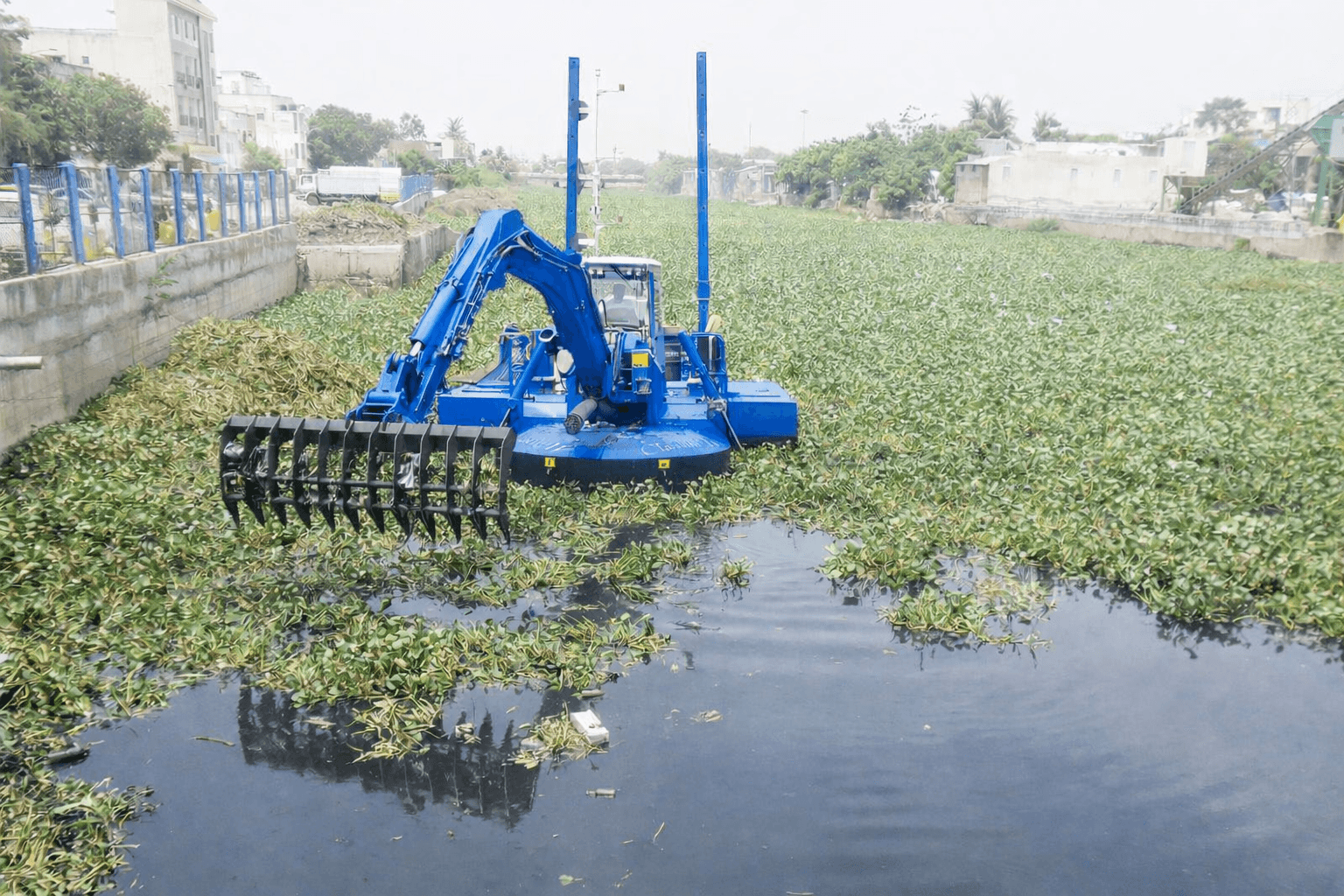

Vegetation Clearing
Efficient aquatic and shoreline management
The vegetation raking capability enables efficient clearing of aquatic and shoreline vegetation that impedes navigation or construction activities. The 2.75-metre wide rake attachment is designed to cut and collect vegetation in a single pass, making it highly effective for maintaining waterways, preparing construction sites, and environmental management projects. Various rake sizes are available dependent on project requirements.
Related Attachments

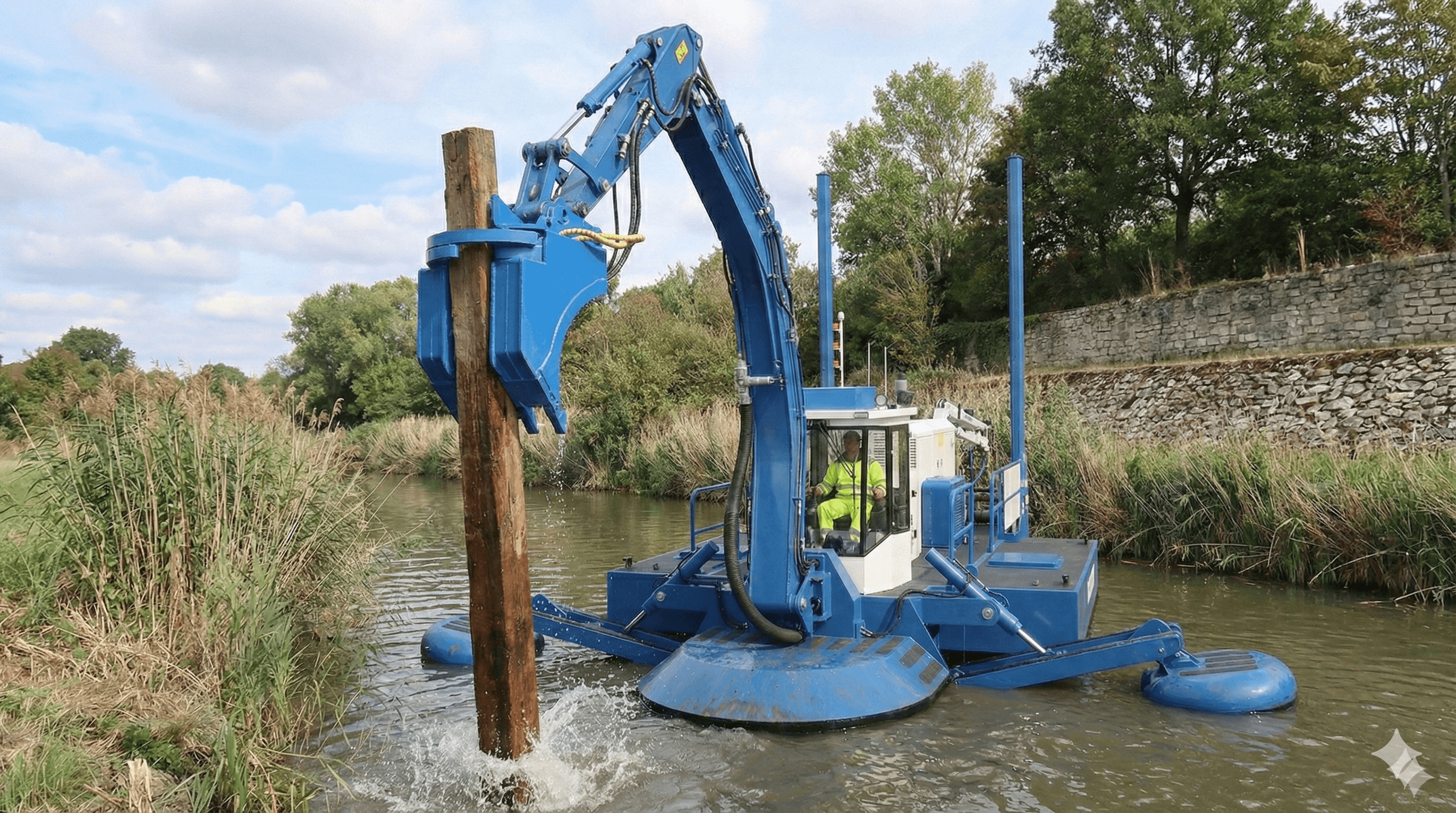

Piling Operations
Steel and timber piles up to 200mm diameter
By utilising high frequency vibration to vibrate the pile body, vertical vibration is passed to the pile which changes the soil structure around it, reducing substrate strength. The combination of excavator downforce, vibrating pile hammer, and pile body weight allows piles to be driven effortlessly. Both timber and steel piles up to 200mm diameter can be installed to 5.0m water depth in sand and silt substrates.
Related Attachments

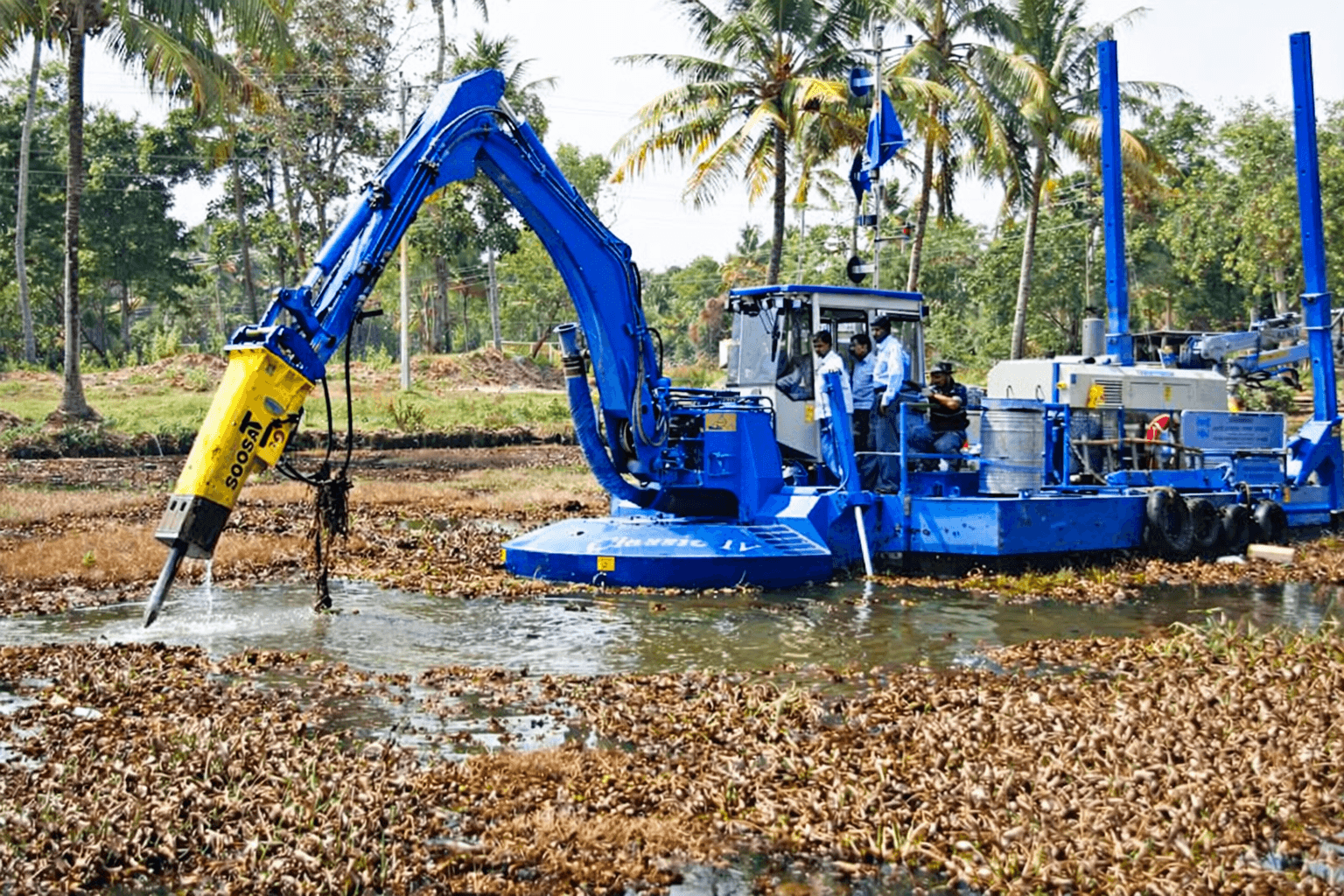

Rock Breaking
Demolition and substrate preparation
Rock breakers are widely used in construction, mining and environmental practices. The powerful percussion hammer attachment is capable of demolishing concrete structures or breaking rocks up to 100mm diameter. With a working weight of 1000kg and impact rate of 450-750 bpm, this capability extends the MOC MultiTool's versatility for challenging substrates and demolition work.
Related Attachments
Attachments
With the MOC MultiTool's rugged, quick-swap attachments, a single machine can take on the full range of shallow-water tasks.
Suction Cutter Head
- Rotating cutter head engineered for very shallow depths
- Dredging capacity of 900 m³/hr
- Dredge depth up to 6.57m
- 300mm diameter pipe
- Easily coiled polyethylene pipes up to 550m length
- Material can be pumped ashore or loaded into barges

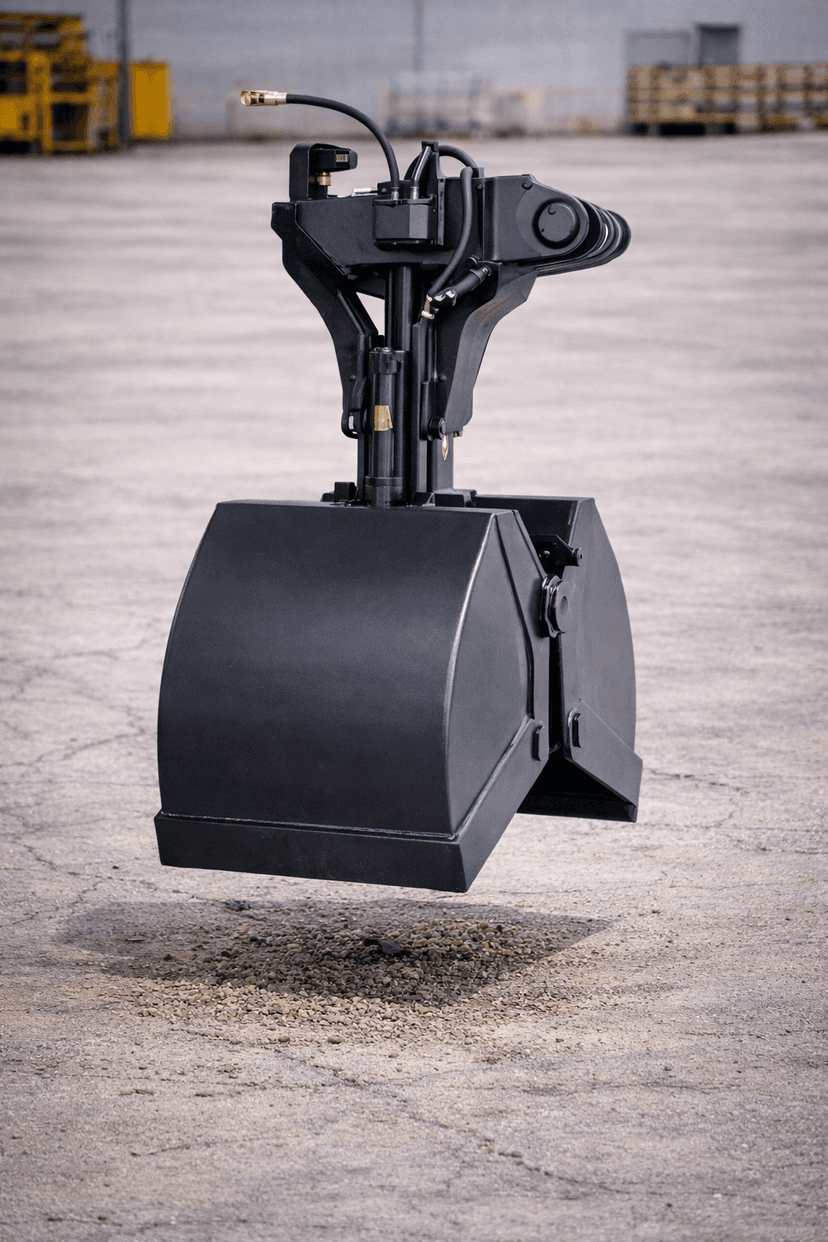

Clamshell Bucket
- Grab capacity of 600 litres
- Ideal for sediment removal near structures
- 180° arm rotation capability

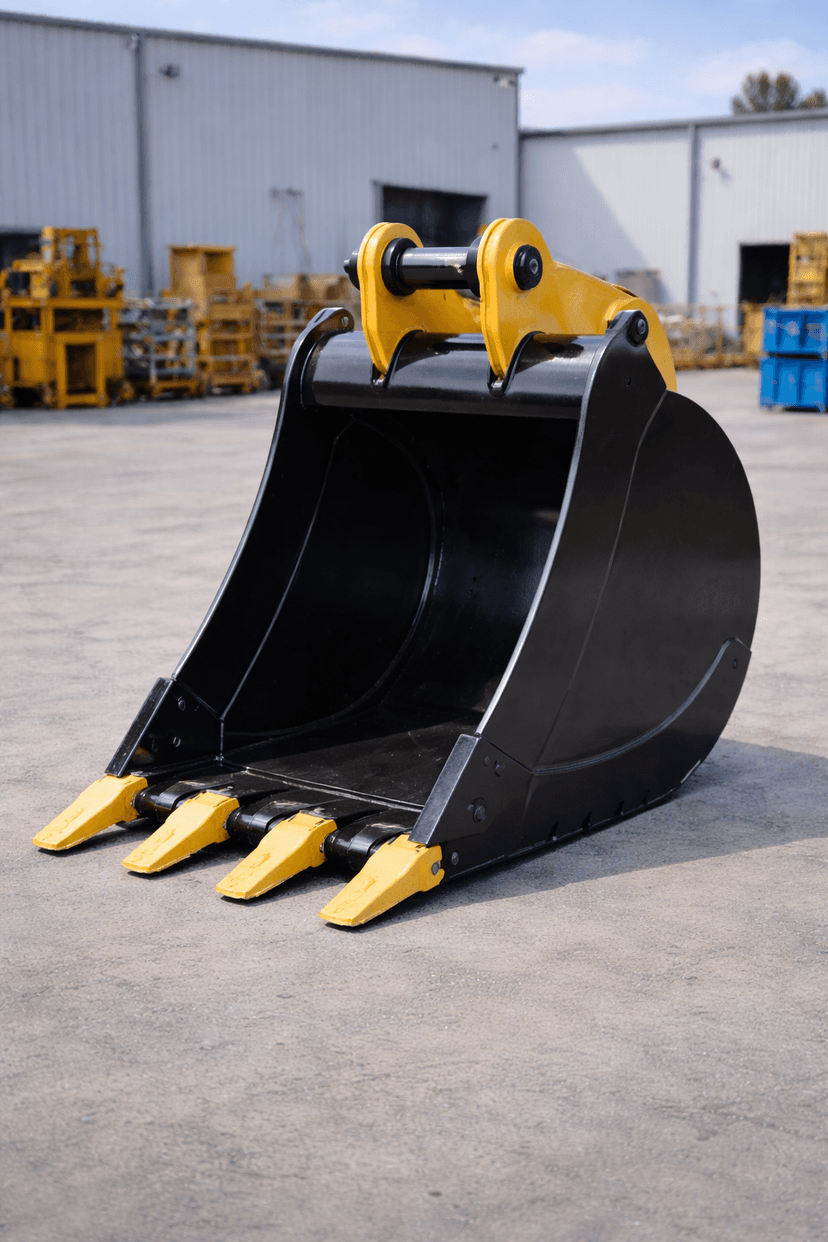

Backhoe Bucket
- 600 litres with teeth or 700 litres without teeth
- Dredge depth of 6.07m
- Versatile backhoe or dipper dredge mode

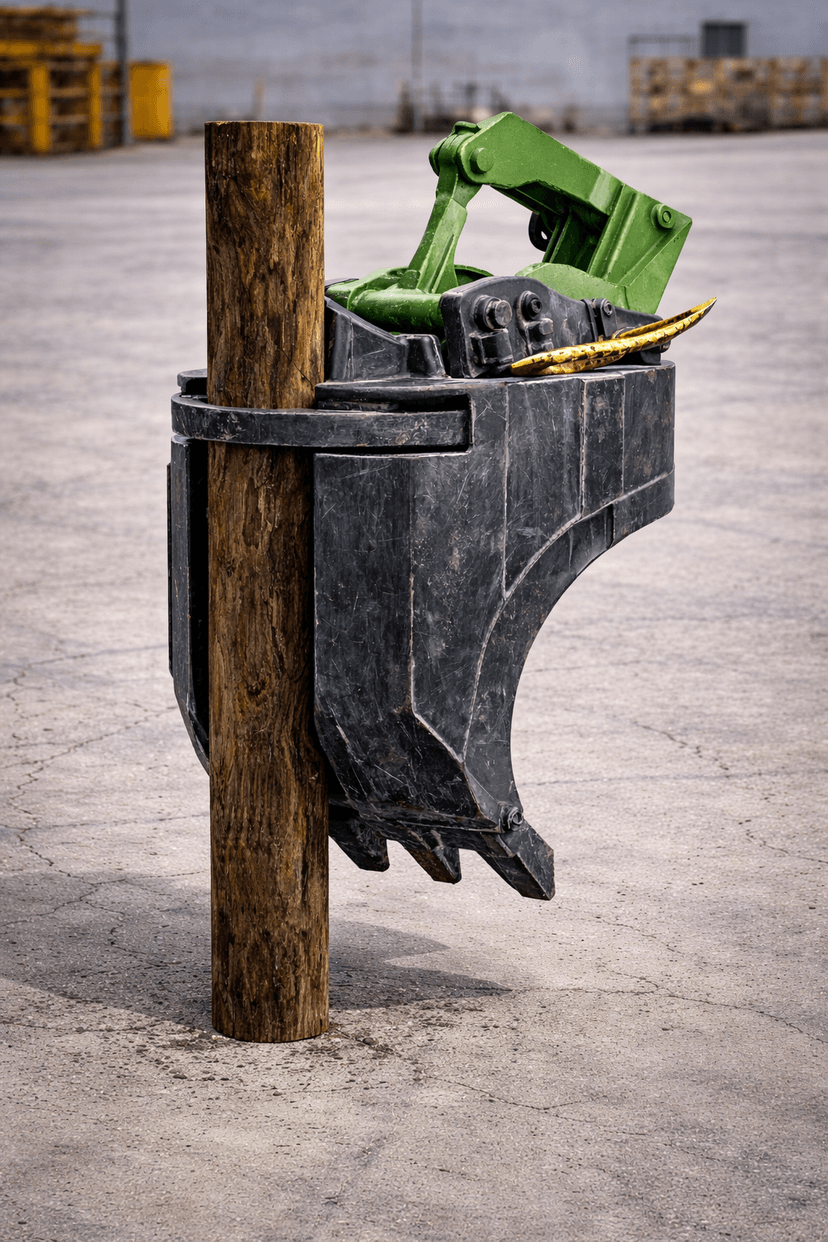

Piling Bucket
- Drives piles up to 20cm diameter
- Works in water depths to 5.0m
- Suitable for both sand and silt substrates

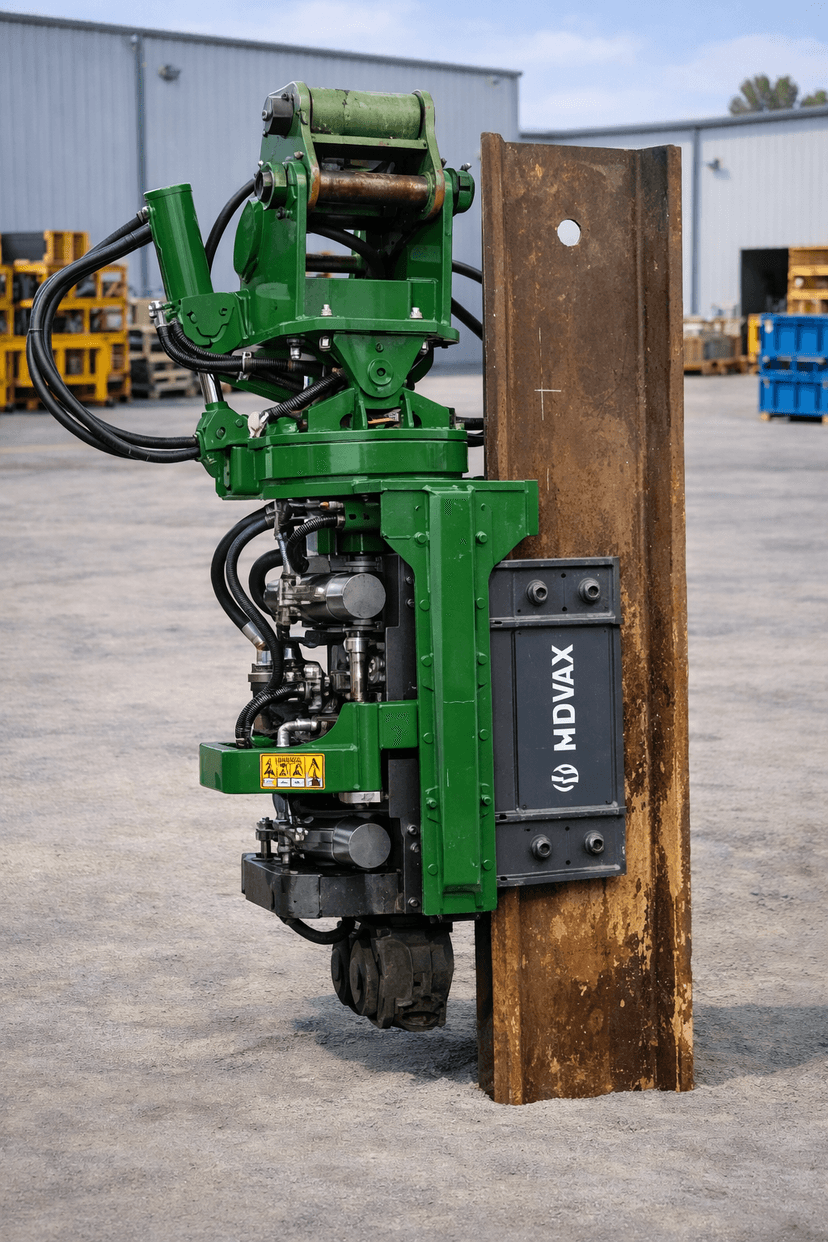

Hydraulic Piling Hammer
- Steel and wooden piles up to 200mm diameter
- Maximum pile depth of 5.0m
- Combines excavator downforce with vibration
- Effortless pile driving in varied substrates

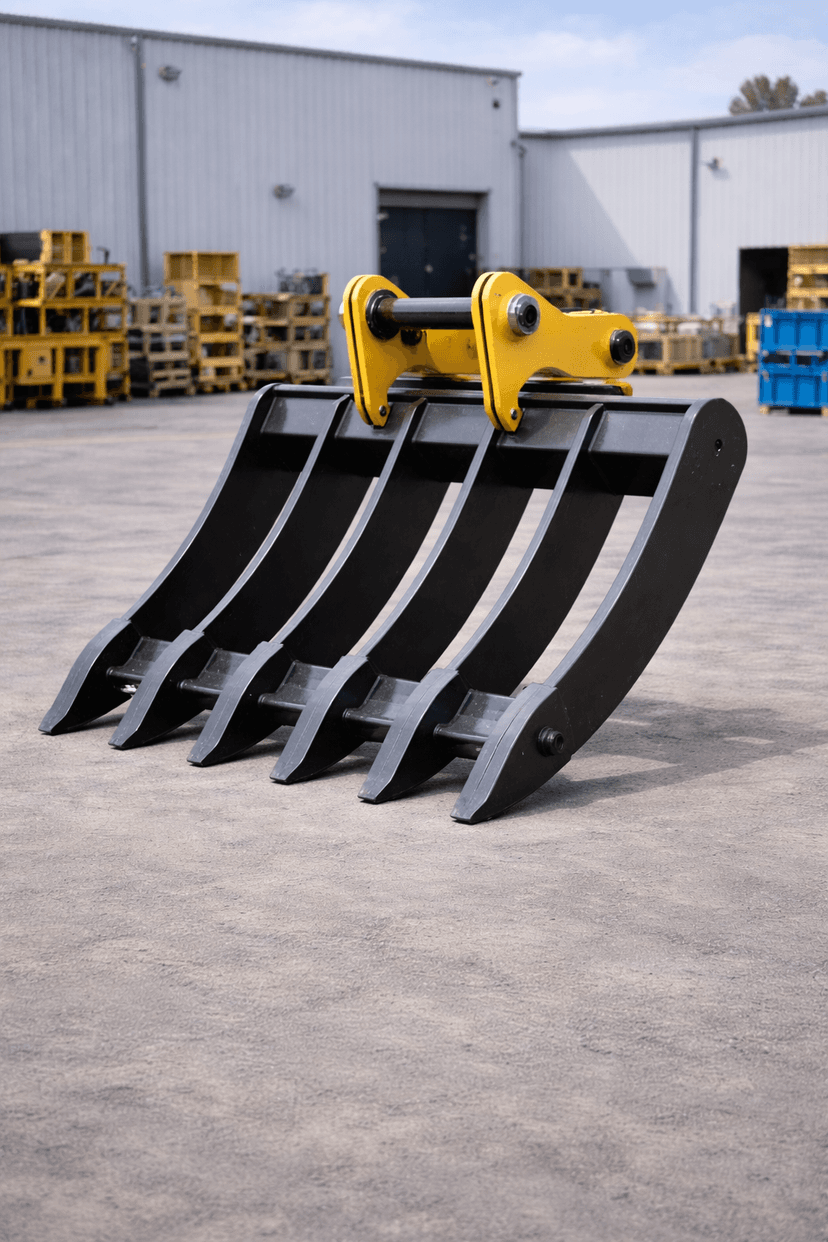

Vegetation Rake
- 2.75 metre wide rake
- Cuts and collects vegetation in a single pass
- Various sizes available per requirements

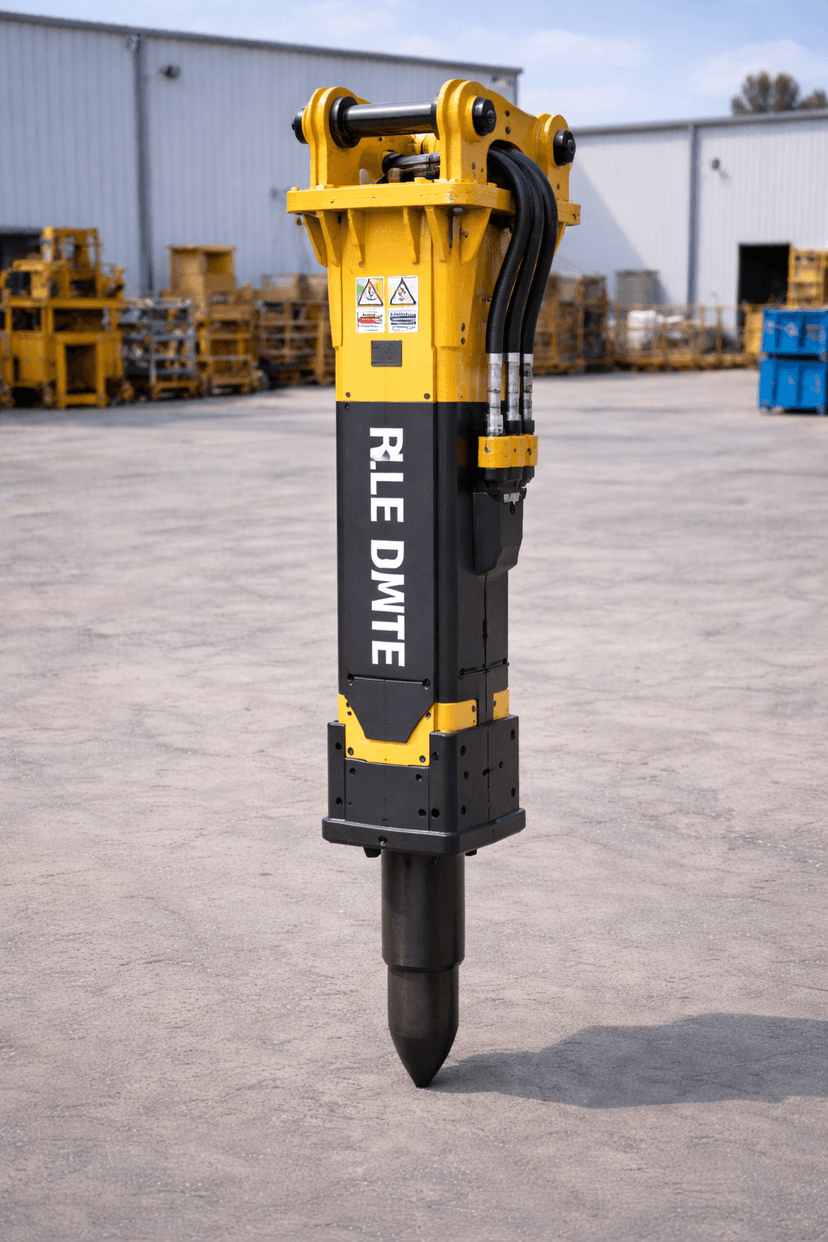

Rock Breaker
- Working weight: 1000kg
- Impact rate: 450-750 bpm
- Breaking ability: Stones up to 100mm diameter
- Separate air compressor included
Hydraulic Auger
- Diametres up to 500mm available
- Ideal for construction and environmental refurbishment
- Range of sizes to suit project requirements
